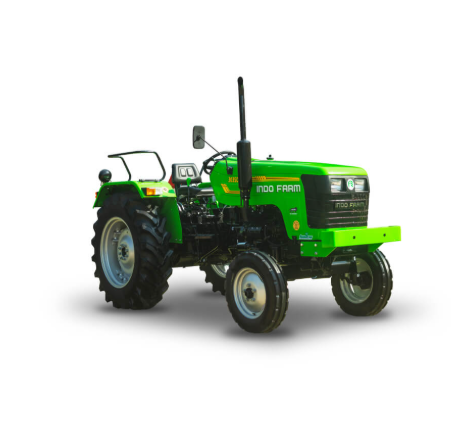

INDO FARM 3035 DI

This performance inspired tractor comes with dry or oil immersed brake options, dual clutch and Mechanical/Power steering options which makes the tractor very comfortable and smooth without causing fatigue. Indo Farm 3035 DI comes with special features like adjustable driver sheet, Tow-Hook and Constant Mesh gearbox. This makes it perfect for implements like ploughing, seed drill, harrow, puddling, haulage and much more with backup torque in case of partial load condition.

Yes I'm Interested

Standard Fitments Features	Details
H.P. Range	38
Type	Diesel, Four Stroke Direct Injection
No. of Cylinders	3
Bore/Stroke	105/111 mm
Compression Ratio	19:1
Rated Speed	2100 RPM
Max. Torque Speed	1200-1400 RPM
Air Cleaner	Dry Type
Fuel Pump	Inline, Make : Bosch India
Cooling System	Water cooled
Clutch System	i) Single	ii) Main Clutch Disc Cerametallic
Hyd. Pump	Gear Type
Lifting Capacity	1400 kgs/1500 kgs (Optional) at Lower Link Ends
Electrical	12 Volts-75 Ah-Battery Self Starter Motor & Alternator
Tyre	Front: 6.00 x 16	Rear: 12.4 x 28
Wheel Track	1355-1895 mm
Measurement
Length	3600 mm
Width	1670 mm
Height upto steering	1615 mm
Min. Ground Clearance	385 mm below R.T. Housing
Weight	1980 kg
P.T.O
1. No. of Splines	6
2. PTO Speed	1000 RPM
Driver's Seat	Adjustable
Transmission No. of Gear Speeds:	8 Forward 2 Reverse
Steering	i) Mechanical - Recirculating ball type ii) Power Steering (Optional)
Steering wheel dia	430 mm
Min. Turning radius	3.2 m
Brake Type	i) DRY: Double disc type (190 mm dia) with parking brake lever ii) Wet : Oil immersed multiple discs (Optional)
